More power where you need and a convenient place for the DIN socket to suit battery charging.
THE PROBLEM
The R1300 Adventure is factory equipped with a single USB (not fast charge) inside the storage compartment on top of the fuel tank. If one wishes to use the smartphone mounted on the handlebar this solution is not ergonomically viable because the lid cover cannot be closed due to the charging cable. This solution from Nippy Normans solves this problem by installing the FAST CHARGE Dual USB-A and USB-C socket on the right side of the TFT display, in place of the DIN socket.
Additionally the kit includes the hardware to relocate the removed DIN socket below the seat on the right frame fairing.

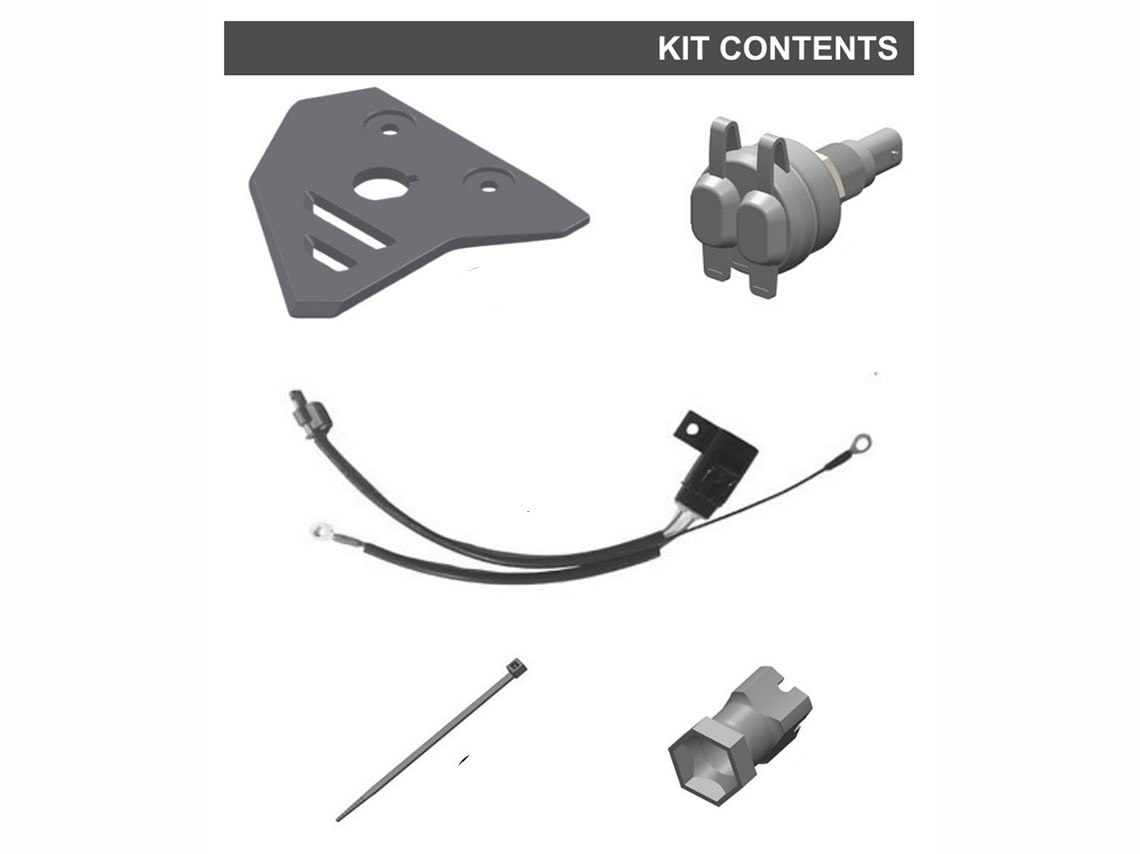

A custom-designed mounting plate is supplied with the kit to mount the socket, as well as a cable harness for battery connection.
A detailed installation booklet is supplied with the kit.
HERE IS THE SOLUTION

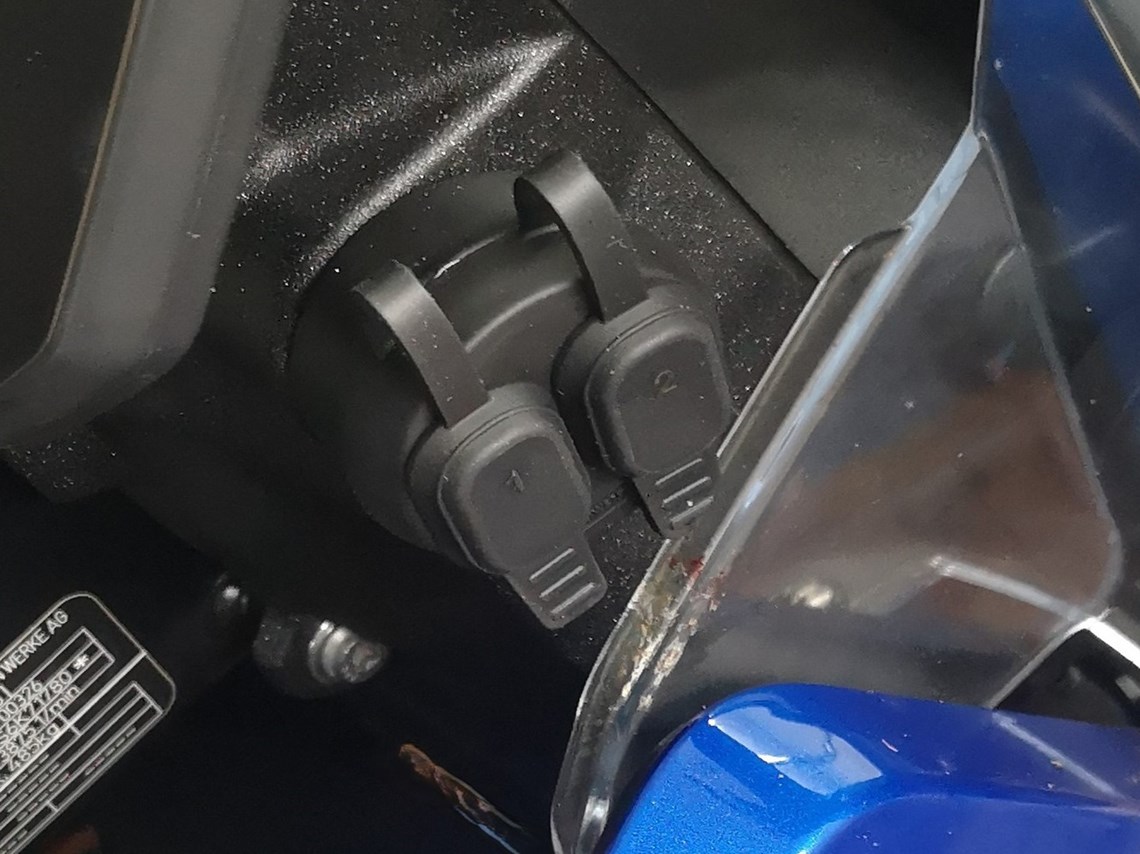

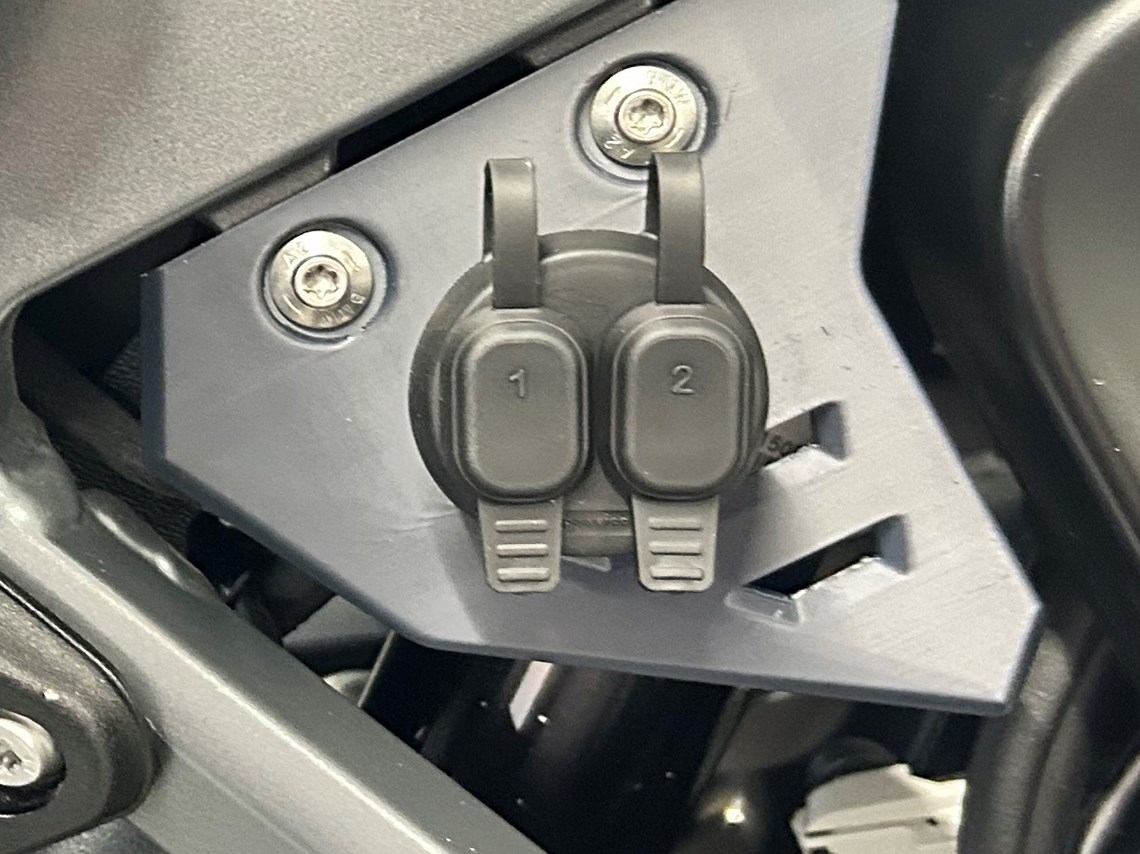

The DIN socket on the right side of the TFT display is replaced with our state-of-the-art FAST CHARGE dual socket charger featuring USB-A and USB-C sockets. (The original BMW USB socket in the cupboard is single USB-A and NOT fast charge)

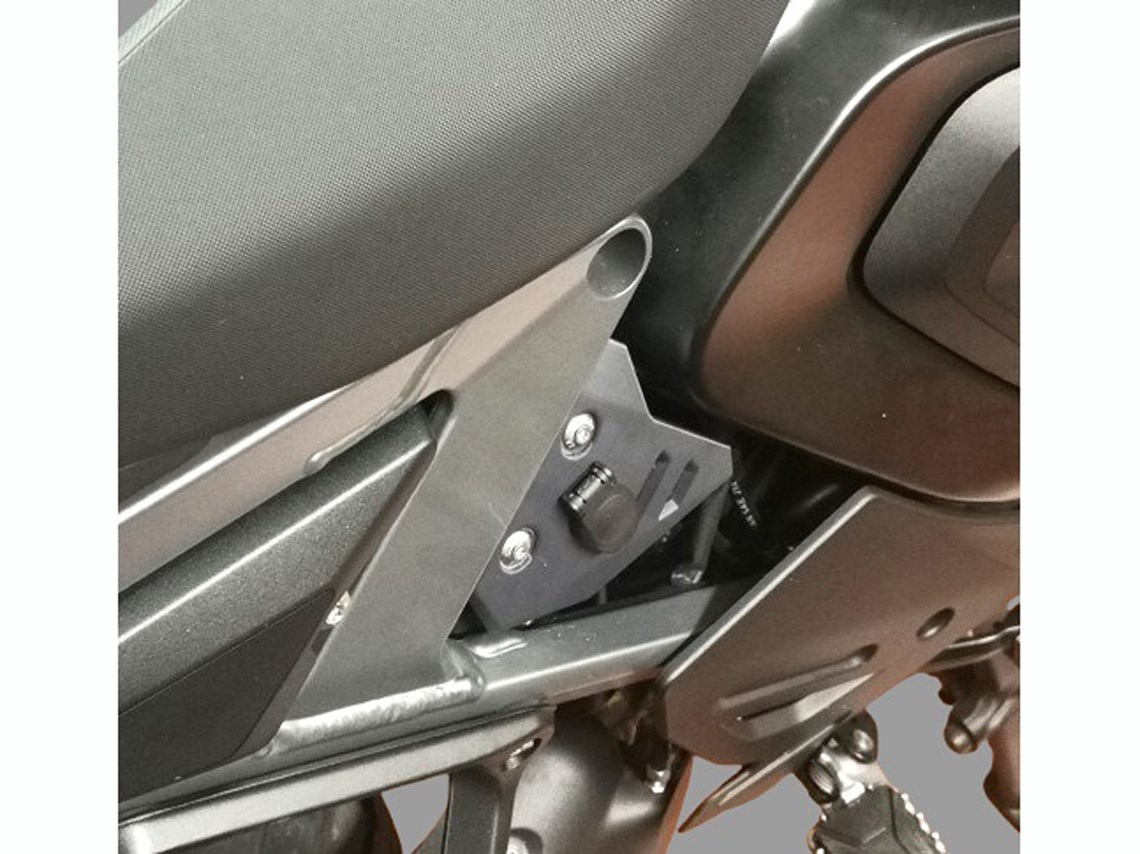

The BMW OE DIN socket is then installed below the bikes seat providing a neat solution for the common use of this socket such as charging/maintaining the Lithium battery or when using heated vests and other accessories.
Kit features:
• Plug and Play replacement of the original DIN socket with dual USB-A and USB-C sockets. Relocation of the BMW DIN socket to a more convenient location by the rear wheel.
Relocation of the BMW DIN socket to a more convenient location by the rear wheel – in a suitable position for battery charging/maintenance or for accessories like a heated vest.
• Very quick installation without special tools.
• Only live if the ignition is on.
• No soldering or costly specialized technician intervention needed.
• New dual socket is always waterproof - sockets when used or when the covers are closed are always waterproof.
• New dual socket features output overvoltage, overheating and short-circuit protection.
• New dual socket is fully Can Bus compatible.
• New dual socket features independent socket rubber covers.
Technical specifications:
Power:
USB-C: 5V?3A / 9V?3A / 12V?3A (36W max.)
USB-A: 4.5V?5A / 5V?4.5A / 5V?3A / 9V?3A / 12V?3A (36W max.)
USB-C + USB-A: 5V?4.8A (24W max.)
Fast charge protocols supported:
USB-C port only: USB PD3.0/PD2.0/PPS (for Apple fast charge shall use Apple Lightning to USB-C cable.
Both ports: Qualcomm Quick Charge QC4+/QC4/QC3.0/QC2.0, Samsung AFC, Huawei FCP and SCP, MediaTek PE2.0/PE1.1, Spreadtrum SFCP, OPPO VOOC.
Other: BC1.2, Apple 2.4A
To fit:
R1300 Adventure.
